Nuinsco Announces Eighth Intersection of More than 100m of Continuous Critical Elements & Phosphate Mineralization at Prairie Lake
Toronto, September 9, 2021 – Nuinsco Resources Limited (“Nuinsco” or the “Company”) (CSE: NWI) today announced an eighth successive intersection of 100m or more of Critical Elements and phosphate mineralization at its 100%-owned Prairie Lake project near Terrace Bay, Ontario with the receipt of analyses producing a 122.7m intersection in DDH NP0807.
“The ongoing drill core sampling program (the “Program”) at Prairie Lake continues to produce exceptional mineralized widths that are defining a very extensive domain of much sought-after rare earth elements, niobium, tantalum and phosphate,” said Paul Jones, Nuinsco’s CEO. “Our intent is to use the results from the Program to upgrade the existing Exploration Target (“ET”) to a resource in the near term.”

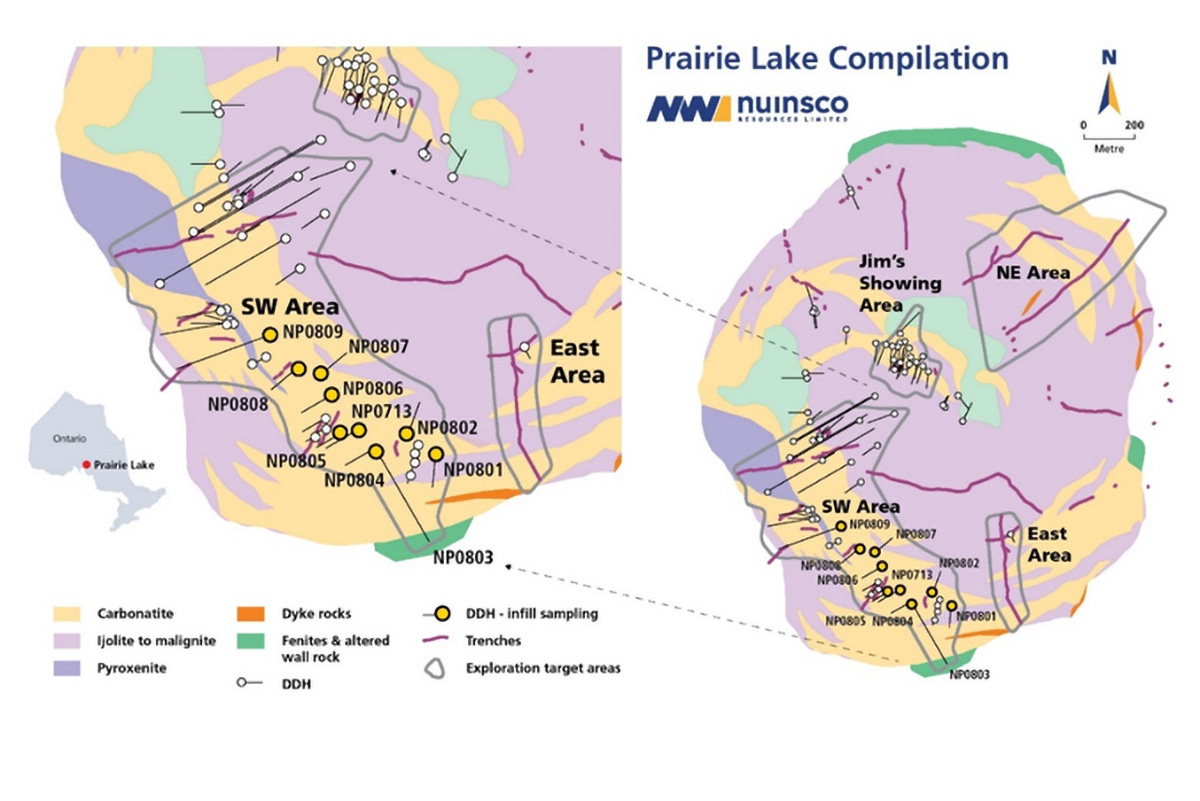

The mineralization of economic interest contained within the Prairie Lake intrusion occurs at surface and extends to unknown depths below the deepest drilling conducted to date (circa 500m vertically). There is no indication that mineralization diminishes with depth and the eight intersections from the Program reported to date occur over an interval of 530m, oriented southeast-northwest, in the Southwest (“SW”) Area (see map below). The Prairie Lake complex hosts a suite of elements of economic interest identified as Critical Elements defined under the Canadian Minerals and Metals Plan (“CMMP”) contained within the very large domain of mineralized rock that is extremely favourably located from a logistical perspective with rail, road, shipping, and power infrastructure already established. Prairie Lake hosts a number of elements and compounds of economic interest including those for which demand is projected to substantially increase and for which secure supply chains are sought.
Analytical results from the 122.7 metres of continuous mineralization (from 2.3-125m) of niobium (Nb), tantalum (Ta), phosphate (P2O5), and rare earth elements (REE) including lanthanum (La), cerium (Ce), samarium (Sm), neodymium (Nd) and yttrium (Y) – analytical results are tabulated below. Eighteen drill-holes have been sampled to date as part of the Program, focussing on drill-holes collared to intercept the SW area which measures 1km in length and is between 150m and 750m wide at surface. The SW area alone hosts 435-530 million tonnes of the total 515-630 million tonne ET, with grades as tabulated in the “Prairie Lake ET” table below.
Hole ID | From (m) |
To (m) |
Width (m) |
Rock Type* |
P2O5 (%) |
Nb2O5 (%) |
Ta2O5 (%) |
Y (g/t) |
La (g/t) |
Ce (g/t) |
Nd (g/t) |
Sm (g/t) |
∑REE (g/t) |
New intersections: | |||||||||||||
NP0807 | 2.3 | 9.88 | 7.58 | SILCARB | 4.60 | 0.028 | 0.004 | 111 | 407 | 1057 | 614 | 111 | 2300 |
15.1 | 21.73 | 6.63 | PYX | 1.80 | 0.179 | 0.003 | 47 | 159 | 374 | 181 | 33 | 794 | |
38.5 | 87.64 | 49.14 | CRBT/PYX | 2.64 | 0.154 | 0.002 | 70 | 194 | 470 | 242 | 45 | 1022 | |
98 | 110 | 12 | PYX/CRBT | 2.17 | 0.120 | 0.003 | 75 | 208 | 487 | 254 | 49 | 1073 | |
Combined extended intersection: | |||||||||||||
NP0807 | 2.3 | 125 | 122.7 | 3.20 | 0.145 | 0.0018 | 81 | 233 | 576 | 281 | 54 | 1225 |
Principal rock type: CRBT=carbonatite; IJ-PYX BX = breccia with crbt matrix & ijolite or pyroxenite clasts; MEL-IJ = melano-ijolite.
∑REE = Sum of Y, La, Ce, Nd, Sm; Y - yttrium, La - lanthanum, Ce - cerium, Nd - neodymium, Sm – samarium.
P2O5 - phosphate, Nb2O5 – niobium oxide, Ta2O5 – tantalum oxide, 1g/t = 1 ppm
The Prairie Lake project consists of 46 mineral claims covering an area of ~630 ha. Prairie Lake is superbly located, easily accessed by an all-weather road from the TransCanada Highway located 28 kilometres to the south. The ET is defined by 59 diamond drill holes.
All samples were analysed by Activation Laboratories (ActLabs) in Ancaster, Ontario. Samples were analysed for a whole rock and trace element ICP analytical package as well as for niobium, tantalum, and zirconium oxides using a fusion XRF method. An internal Quality Control Quality Assurance (QAQC) program was implemented with four QAQC samples (blanks and reference standards) added into the sampling stream.
Prairie Lake Drilling & Trenching by Target Area1:
SW | Jim's Showing | East | NE | Other Areas | Total | ||
Historic Drill Holes (1969-1983) | Drill Holes | 16 | 11 | 1 | 0 | 17 | 45 |
Metres | 1351.7 | 938.4 | 34.1 | 0 | 1528.5 | 3852.7 | |
Drill Holes (2007-2010) | Drill Holes | 21 | 10 | 0 | 0 | 1 | 32 |
Metres | 6632 | 1692.4 | 0 | 0 | 101 | 8425.4 | |
Trenches (2010) | Trenching | 1 | 0 | 2 | 2 | 0 | 5 |
Metres | 377.7 | 0 | 433.0 | 754.55 | 0 | 1562.2 |
1 Trench lengths are calculated as cumulative length of samples along trench.
Prairie Lake ET2:
SW | Jim's Showing | East | NE | Total | |
REEs | |||||
La (ppm) Lanthanum | 275 - 340 | 295 - 360 | 305 - 370 | 200 - 250 | 280 - 340 |
Ce (ppm) Cerium | 650 - 790 | 670 - 820 | 670 - 820 | 450 - 550 | 650 - 790 |
Sm (ppm) Samarium | 55 - 70 | 55 - 70 | 55 - 70 | 50 - 60 | 55 - 70 |
Nd (ppm) Neodymium | 295 - 360 | 290 - 360 | 320 - 390 | 235 - 290 | 300 - 360 |
Y (ppm) Yttrium | 85 - 100 | 90 - 110 | 80 - 100 | 135 - 170 | 85 - 100 |
La+Ce+Sm+Nd+Y (ppm) | 1360 - 1660 | 1400 - 1720 | 1430 - 1750 | 1070 - 1320 | 1370 - 1660 |
Additional Elements (as oxides) | |||||
P2O5 (%) Phosphate | 3.0 - 4.0 | 3.5 - 4.5 | 2.5 - 3.0 | 2.5 - 3.5 | 3.0 - 4.0 |
Nb2O5 (%) Niobium | 0.095 - 0.115 | 0.100 - 0.120 | 0.040 - 0.050 | 0.085 - 0.105 | 0.090 - 0.110 |
Ta2O5 (ppm) Tantalum | 18 - 25 | 25 - 30 | 5 - 7 | 10 - 12 | 18 - 21 |
Volume - m3 (million) | 140 - 175 | 12 - 14 | 13 - 16 | 2 - 3 | 170 - 210 |
Tonnes (million) | 435 - 530 | 35 - 45 | 40 - 50 | 7 - 8 | 515 - 630 |
2 A full description of methodology used to estimate the Prairie Lake Project Exploration Target is contained in the Technical Report dated 30 November 2018 prepared by P&E Mining Consultants Inc. that is filed on SEDAR. The potential quantity and grade of the ET is conceptual in nature and there has been insufficient exploration to define a mineral resource. It is uncertain if further exploration will result in the discovery of a mineral resource. There is no National Instrument 43-101 – Standards of Disclosure for Mineral Projects preliminary economic assessment in respect of the Prairie Lake ET.
Laura Giroux, P.Geo, Chief Geologist, acts as Nuinsco's Qualified Person under National Instrument 43-101. Ms. Giroux has reviewed and approved the technical contents of this news release.
About Nuinsco Resources Limited
Nuinsco Resources has over 50 years of exploration success and is a growth-oriented, multi-commodity mineral exploration and development company focused on prospective opportunities in Canada and internationally. Currently the Company has four properties in Ontario – the high-grade Sunbeam gold property near Atikokan, the Dash Lake gold property near Terrace Bay, the large multi-commodity (rare-earths, niobium, tantalum, phosphate) Prairie Lake project near Terrace Bay, and the Zig Zag Lake property (lithium, tantalum) near Armstrong. In addition, Nuinsco has an agreement for gold exploitation at the El Sid project in the Eastern Desert of Egypt.
